Autocar Smart Dash: A Smarter Command Center for Staying Always Up
At Autocar, uptime isn’t just a goal — it’s the mission. That’s exactly why the Autocar Smart Dash was built. More than a dashboard, it’s an intelligent, operator-friendly command center designed to keep drivers informed, technicians efficient, and trucks on the road where they belong.
From real-time visibility to advanced diagnostics, the Smart Dash puts critical truck information exactly where it’s needed. Right in front of the people who rely on it every day.
A Clear View of What Matters Most

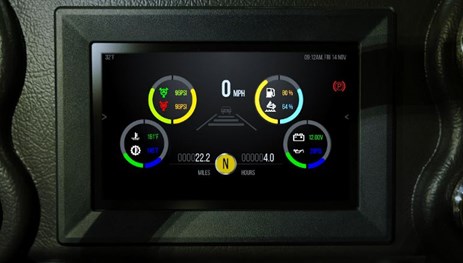

At the center of the Smart Dash is the 7-inch Always Up Display. This screen is the heart of the system, delivering vital gauges and operational data at a glance.
The layout is intentionally clean. Every gauge is designed to be highly visible and easy to distinguish, even in demanding work environments. There’s no unnecessary clutter, just the information operators need to make fast, confident decisions.
And when something isn’t right, the display doesn’t stay quiet.
Built-In Safety Alerts That Demand Attention
The Smart Dash actively monitors vehicle health and alerts the operator the moment an issue arises.

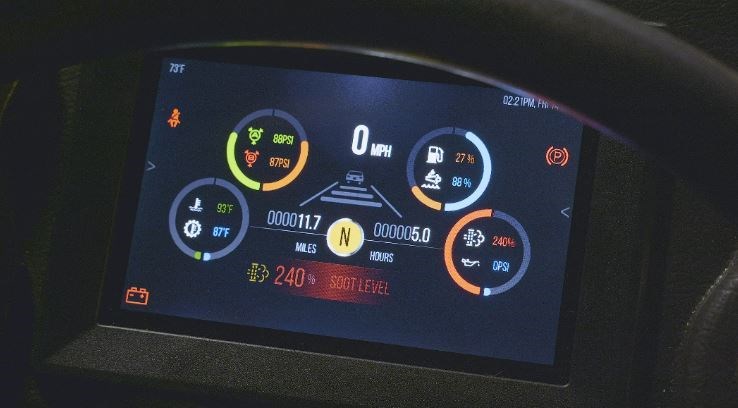

Take exhaust aftertreatment, for example. When soot levels in the filter reach 100%, the gauge turns yellow and an audible alert sounds. An early warning that attention is needed. If soot levels continue climbing to 170%, the gauge turns red and the alert intensifies, making it clear the truck should be inspected by a technician.
These escalating warnings remove guesswork and help prevent small issues from turning into major downtime.
More Than a Display: Full Vehicle Interaction
The Smart Dash isn’t just about viewing data, it allows operators and technicians to interact directly with the vehicle through an intuitive Main Menu.
Using two slide-out menus, users can:

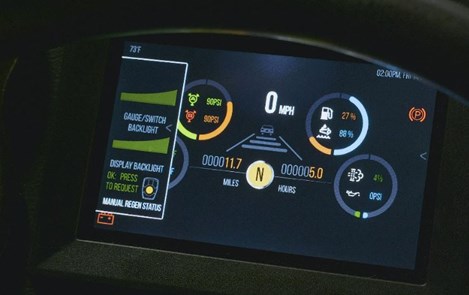

The left menu controls backlighting and allows for force regeneration when needed.

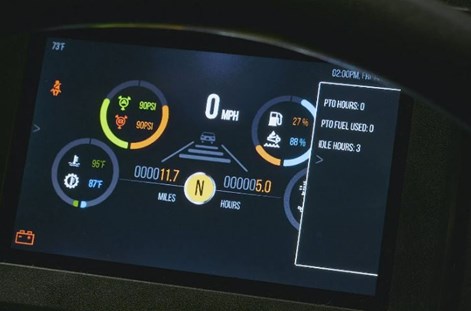

The right menu provides real-time engine data, PTO hours, PTO fuel usage, and idle hours — critical insights for maintenance planning and operational efficiency.

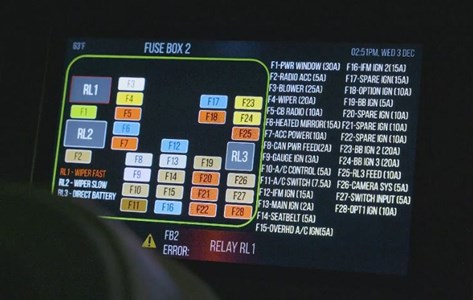

Smart Fuse: Faster Troubleshooting at a Glance
When something goes wrong, time matters. That’s where the Smart Fuse screen becomes invaluable.
Instead of hunting for issues manually, the Smart Dash instantly displays fuse and relay faults on a clear visual map. Technicians can see exactly what’s failed and where, reducing diagnostic time and getting trucks back in service faster.
Advanced Diagnostics Without Extra Tools
The Smart Dash gives direct access to comprehensive vehicle diagnostics, covering:
And for even faster troubleshooting, Autocar developed One-Touch Diagnostics.
With the press of a single button, the truck helps identify electrical issues such as shorts or open circuits. Technicians can view schematics for everything from marker lights to harness layouts, making it easier to pinpoint the root cause instead of guessing.
For deeper testing, specific inputs can be forced to isolate components or circuits. By systematically ruling out sections of the system, technicians save hours of frustration and unnecessary downtime.
Fault Codes and Schematics — All in One Place
The Smart Dash displays 100% of Allison, Cummins, and Wabco fault codes directly on-screen. No external diagnostic tools required.
That means technicians get a single, unified view of the entire truck — chassis, engine and transmission — all from one display.

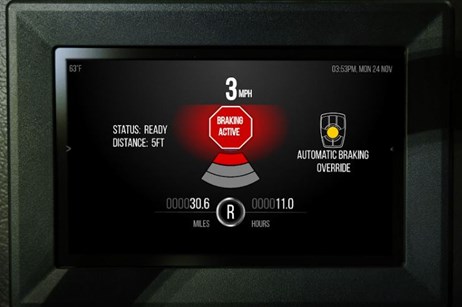

Integrated with ADAM and Smart Battery Cable
If your truck is equipped with ADAM, Autocar’s driver assist system, or the Smart Battery Cable, their alerts and notifications appear seamlessly on the Smart Dash. Everything works together, giving operators and technicians a centralized view of truck health and performance.
Designed for the Cab and the Shop
The Autocar Smart Dash was built with real-world use in mind, whether that’s an operator behind the wheel or a technician diagnosing an issue in the shop.
By combining clear visibility, intelligent alerts, and powerful diagnostic tools, the Smart Dash helps reduce downtime, simplify troubleshooting, and keep trucks operating at their best.
That’s the Autocar Smart Dash, helping you stay informed, stay efficient, and stay Always Up.
