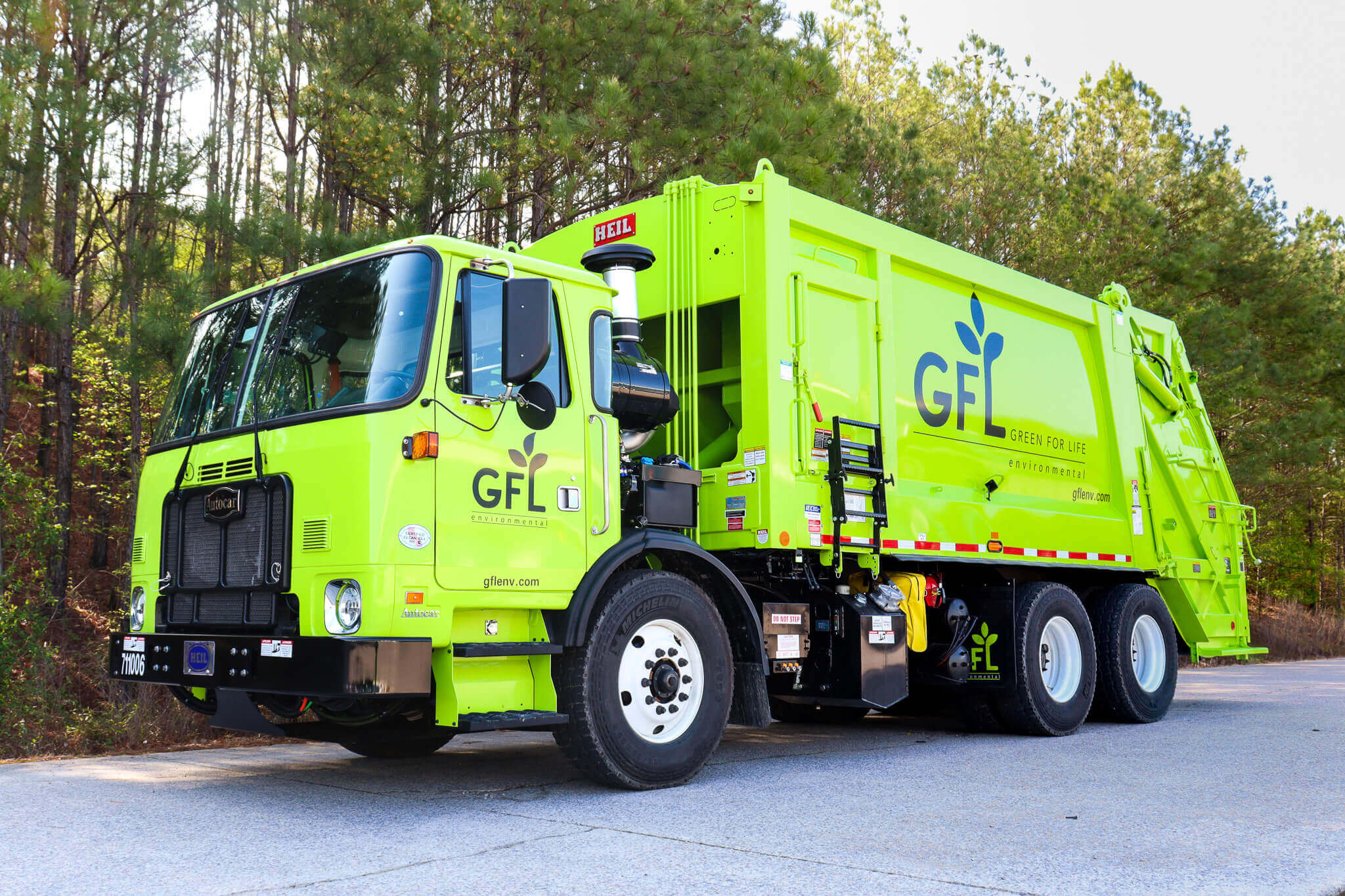

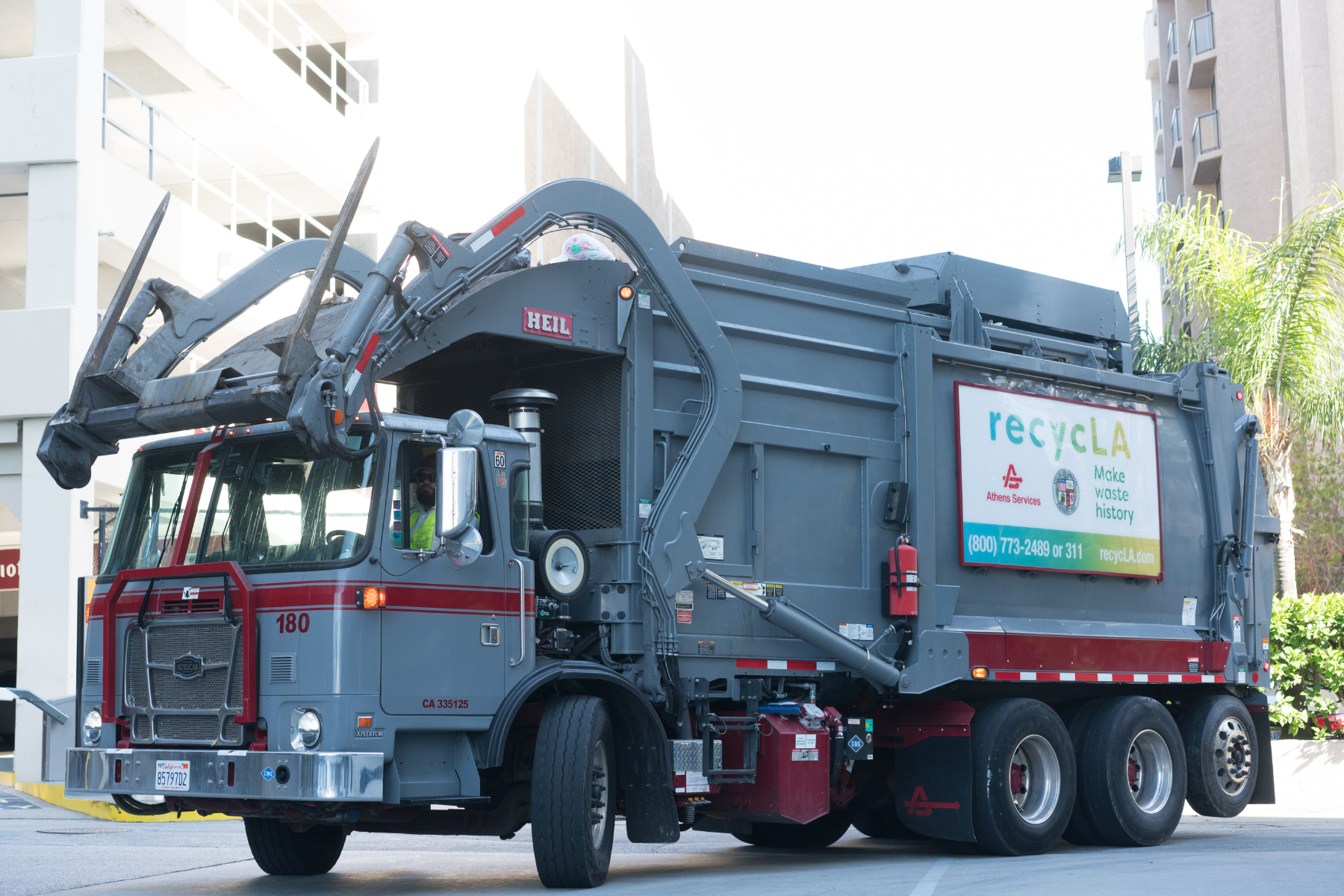

Autocar ACX® Severe-duty Cabover

acx

Virtual Tour EXPLORE THE FEATURES THAT MAKE THE ACx SO PRODUCTIVE AND RELIABLE.

Fullscreen

Front

Driver Side

Through the Door

Interior

Passenger Side

Engine Bay

Rear

Galvannealed Steel Cab

Is more robust than aluminum featuring two-sided galvanized steel. Its rivetless construction requires less maintenance.

Standard Retractable Mirrors

Vibration-free, increasing visibility and safety. Heated option further increases visibility, safety in weather conditions. Breakaway/folding construction reduces damage. Split design easier to maintain - no need to replace entire panel. Breakaway/folding construction reduces damage.

Panoramic wiper blades

Wide-sweeping blades increase visibility and safety in adverse weather conditions.

Quick-Change Grille

Takes less time to maintain the cool pack and allows for significant clearance for the front end PTO

Breakaway LED Turn Signals

Turn signals extend outward for additional visibility, and LED light offers greater energy efficiency than halogen

Standard halogen headlights

Provide visibility and safety in dark work conditions. LED option available. Better visibility in dark work conditions means less risk of accidental damage. They are easy to get and cheaper to replace.

B-Pillar Windows.

Maximizes visibility and safety. Contributes to 324.5 degree visibility from driver's seat (that's 90% of 360) Removable for easy, quick maintenance.

Powertrain Integrated by Autocar

Cummins engines lead industry in performance, reliability and service points. ISL G - 300-320HP. ISX G - 350hp. ISL - 330-370hp (380hp for E3) ISX-350hp. Autocar's proprietary transmission control software optimized for refuse.

Industry Leading Fuel Management Module (FMM) Preparation

Autocar is the only OEM chassis manufacturer the provides CNG-ready installation direct from its factory.

Door Hinge Fasteners

Automotive door hinge system on standard doors has no visible exterior hinge to rust or freeze in inclement weather

Best in Class Routing and Clipping

Harnesses are clamped away from the bottom frame flange to protect from dirt build-up. Airlines are color-coded for ease of fault-finding. Elimination of over 80lbs of wiring simplifies maintenance and optimizes legal weight payload up to 1,000 lbs

Wraparound Flush Bumpers

Increases safety by preventing cab damage

Self-Cleaning Steps

Less maintenance is required to keep steps clean and safe. Ergonomic Ingress/Egress - lower step height, closer to ground level, reduces driver fatigue for routes with multiple enters and exits

Roomiest Available Cab

Visibility, comfort, and durability make the ACX the preferred severe-duty workspace. Autocar offers a severe service cab with all-welded steel construction for strength, weight savings, and driver safety

Adjustable Steering Wheel

Tilt and reach- adjustable allows for easier operation and more belly room

In-Dash HVAC

Dashboard defrost vents keep windshield clear in cold weather. No auxiliary fans. Optional dual overhead HVAC for increased comfort in all weather. Increases safety and reduces risk of accidental damage.

Body Integration

Custom-engineered configurations eliminate control boxes from the cab interior - better visibility, and safer. More ergonomic, easier to operate truck and a more comfortable experience. Better, simpler wiring means electronics-related mishaps are less likely to occur on route. Elimination of over 80lbs of wiring increases payload capacity.

Best in Class Routing and Clipping

Wraparound Windshield

Contributes to 325-degree driver visibility, and its two-piece construction simplifies maintenance

Removable panel construction

Means easier, quicker maintenance and lower costs.

Insulated Cab

Tested to keep drivers comfortable in extreme cold and heat - up to 120 degrees, and lower interior noise

A-Pillar Inserts

Makes it easier and faster to maintain harnesses and reduces downtime

Removable dash panel

Makes servicing HVAC easier and faster, which reduces maintenance costs.

Righthand Drive Options

Available in Right-hand Stand-up (RHS) and Standard door layouts and four different driving configurations

Righthand Drive Options

Available in Right-hand Stand-up (RHS) and Standard door layouts and four different driving configurations

Strongest, Lightest Frame Rail

Reduced frame rail weight increases payload. Legal weight optimization can increase payload up to 1,000lbs. Strength ensures maximum reliability on route. Variable drop frame reduces overall weight while increasing strength in high-stress areas. Body-integrated holes are punched, not drilled, pre-installation. Reduces need for frame maintenance.

Constant Torque Clamps

Vibrationless constant torque clamps keep connections secure, prevent wear and tear. Avoid mishaps and wasted time on route. Makes electronics and engine maintenance easier. Reduces costs and damage liability. Avoids downtime as well.

Convenient Locations

Fluid check and fill locations are always grouped together to facilitate ease of access during inspections. Larger sight glass gives better view of coolant level to prevent over or under-fill situations

Clips and Hangers

Keep wiring from rubbing against the frame, helping prevent electrical shorts

Rear Window Visibility

Clear visibility allows operators to watch the packer blade position, and make sure body is functioning properly, improving productivity.

ACX®

Severe-Duty Cabover

ACX APPLICATIONS

Contact an Expert

ACX FORMAT OPTIONS

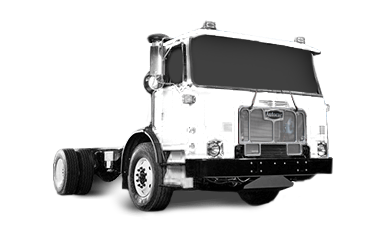

4X2

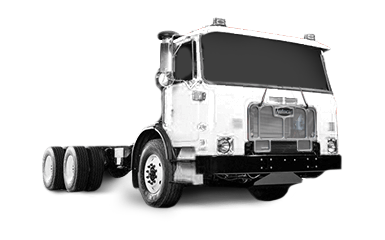

6X4

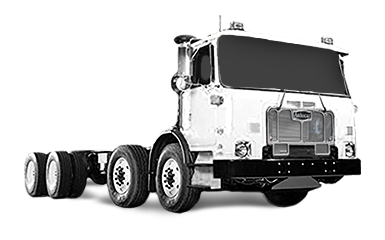

8X4

Front

Driver Side

Through the Door

Interior

Passenger Side

Engine Bay

Rear

Galvannealed Steel Cab

Standard Retractable Mirrors

Panoramic wiper blades

Quick-Change Grille

Breakaway LED Turn Signals

Standard halogen headlights

B-Pillar Windows.

Powertrain Integrated by Autocar

Industry Leading Fuel Management Module (FMM) Preparation

Door Hinge Fasteners

Best in Class Routing and Clipping

Wraparound Flush Bumpers

Self-Cleaning Steps

Roomiest Available Cab

Adjustable Steering Wheel

In-Dash HVAC

Body Integration

Best in Class Routing and Clipping

Wraparound Windshield

Removable panel construction

Insulated Cab

A-Pillar Inserts

Removable dash panel

Righthand Drive Options

Righthand Drive Options

Strongest, Lightest Frame Rail

Constant Torque Clamps

Convenient Locations

Clips and Hangers

Rear Window Visibility

Strongest, Lightest Frame Rail

ACX ENGINE & FUEL OPTIONS

CUMMINS X12

CUMMINS L9

CUMMINS L9N

CUMMINS ISX12N
